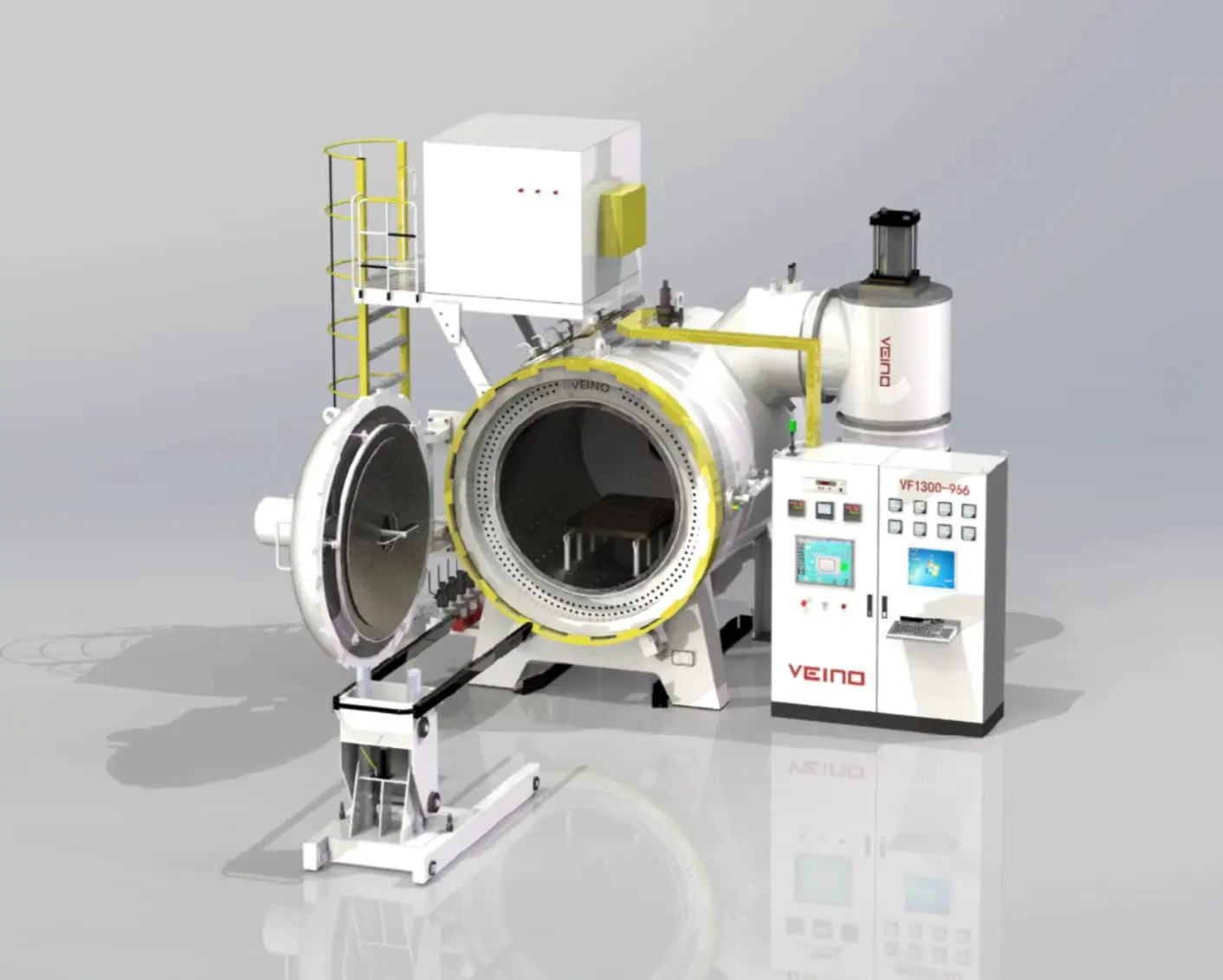

Horizontal Vacuum Furnace
SERIES CODE: VF1300-966
High-performance industrial horizontal vacuum brazing and heat treatment furnace for large-scale production with precise temperature control, uniform heat distribution, and Mo-La heating element
Quick Specs
Temperature Range1300° C
Heated Zone≤1300°C
Workspace900×600×600 mm
Temperature Range1300° C
Thermal Stability± 0.5°C
Heating Rate15°C/min
Internal Volume24 Liters
Technical Documents
Tutorial
Features & Benefits
±1°C PID accuracy across all segments
clean oil-free molecular pump system
circumferential Mo-La heating element distribution
Excellent data traceability with a vacuum data recorder
Fast start-up, no diffusion pump warm-up required
N₂/Ar atmosphere compatible with controlled-atmosphere processes
PLC-based interlock and safety
±1°C PID accuracy across all segments
clean oil-free molecular pump system
circumferential Mo-La heating element distribution
Excellent data traceability with a vacuum data recorder
Fast start-up, no diffusion pump warm-up required
N₂/Ar atmosphere compatible with controlled-atmosphere processes
PLC-based interlock and safety

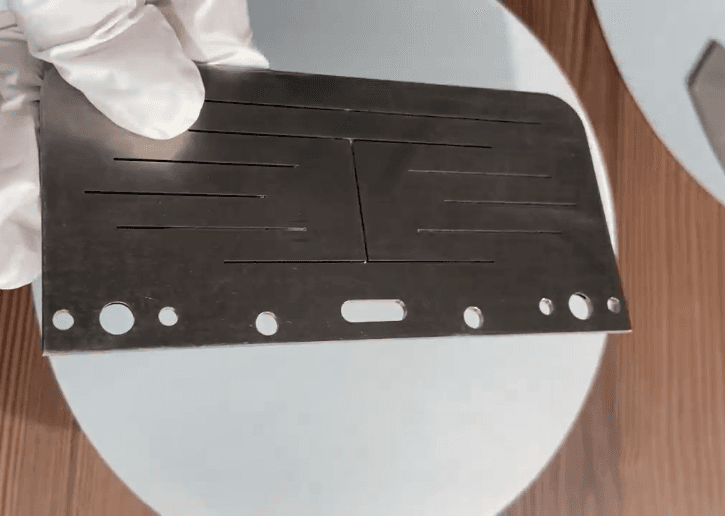

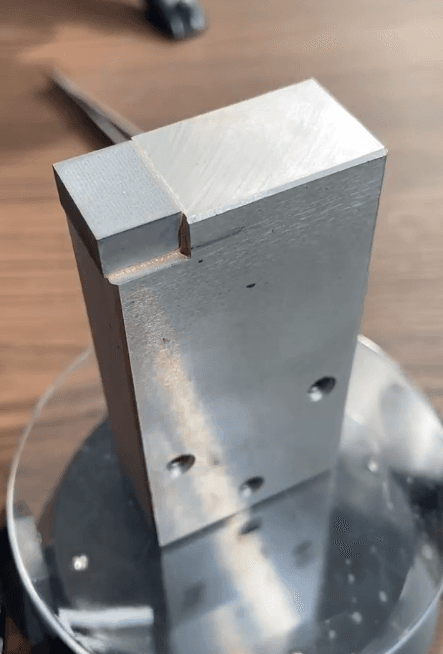

Customer Cases
Need a Custom Configuration?
Contact Our Engineers.
Our engineering team can tailor chamber sizes, atmospheric controls, and software integration to your exact specs.
