Horizontal Vacuum Brazing Furnace
SERIES CODE: VF1300-755
Horizontal Vacuum furnace with ±1℃ temperature control accuracy and molybdenum lanthanum alloy heating element.
Quick Specs
Temperature Range1300° C
Heated Zone≤1300°C
Workspace700×500×500 mm
Temperature Range1300° C
Thermal Stability± 0.5°C
Heating Rate15°C/min
Internal Volume24 Liters
Technical Documents
Tutorial
Features & Benefits
Front and rear auxiliary heating eliminates the cold zone at the chamber ends
3-zone PID control with cross-zone coupling for superior uniformity
Circumferential MoLa element distribution throughout the hot zone
Oil-free system: no diffusion pump, no oil contamination risk
PLC automation with a vacuum data recorder for traceability.
N₂/Ar atmosphere compatible for controlled-atmosphere processes
Front and rear auxiliary heating eliminates the cold zone at the chamber ends
3-zone PID control with cross-zone coupling for superior uniformity
Circumferential MoLa element distribution throughout the hot zone
Oil-free system: no diffusion pump, no oil contamination risk
PLC automation with a vacuum data recorder for traceability.
N₂/Ar atmosphere compatible for controlled-atmosphere processes

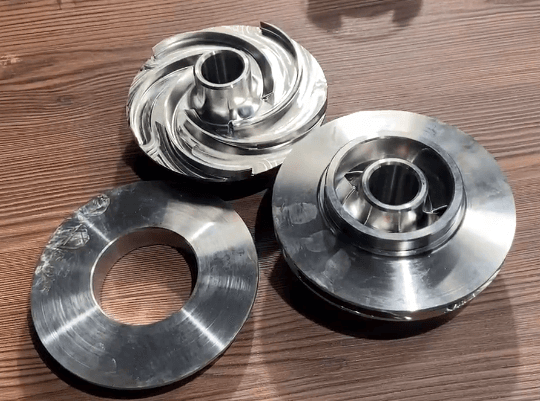

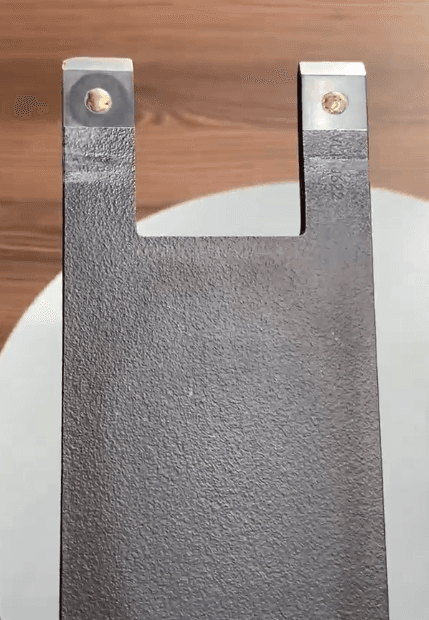

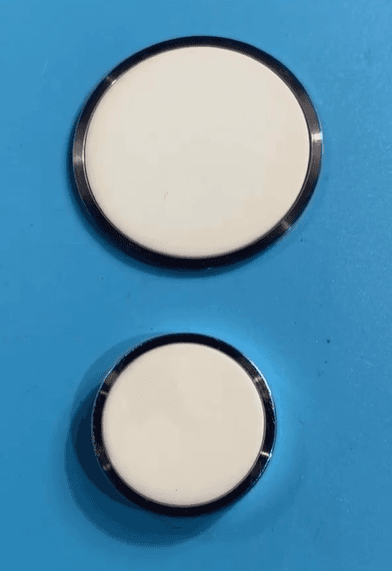

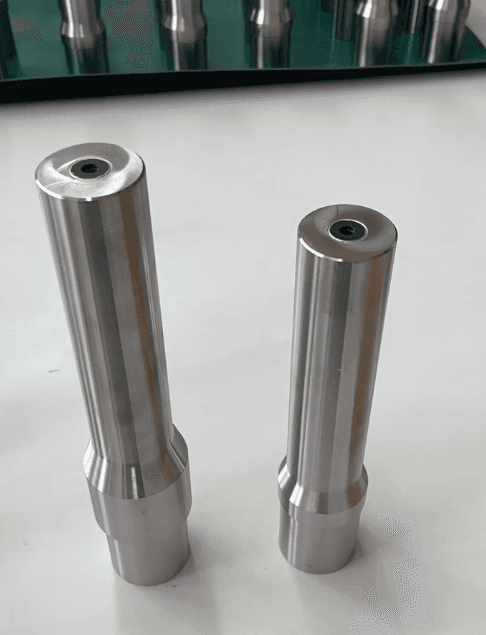

Customer Cases
Need a Custom Configuration?
Contact Our Engineers.
Our engineering team can tailor chamber sizes, atmospheric controls, and software integration to your exact specs.
Related Products

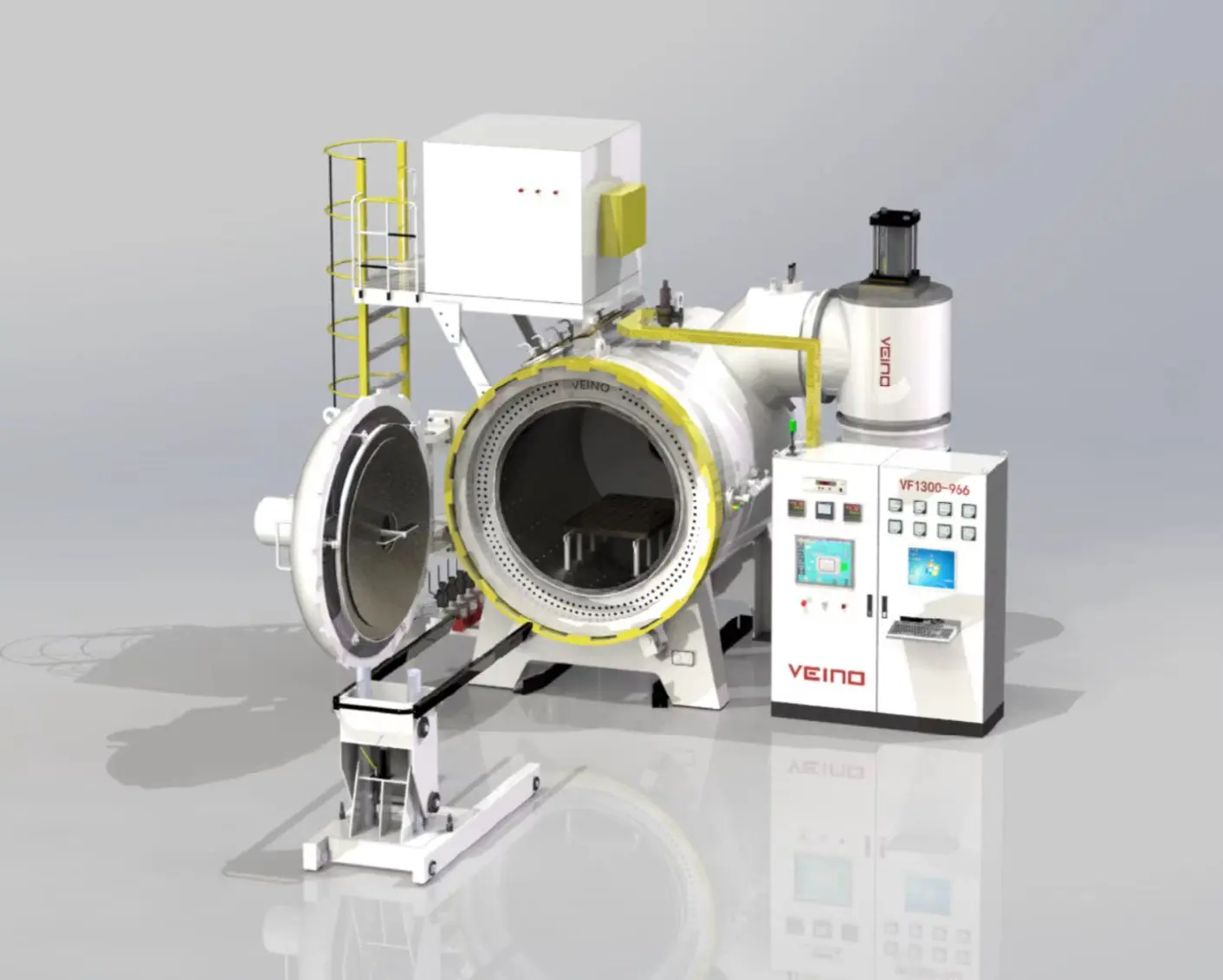

VF-Series (Industrial Furnaces)

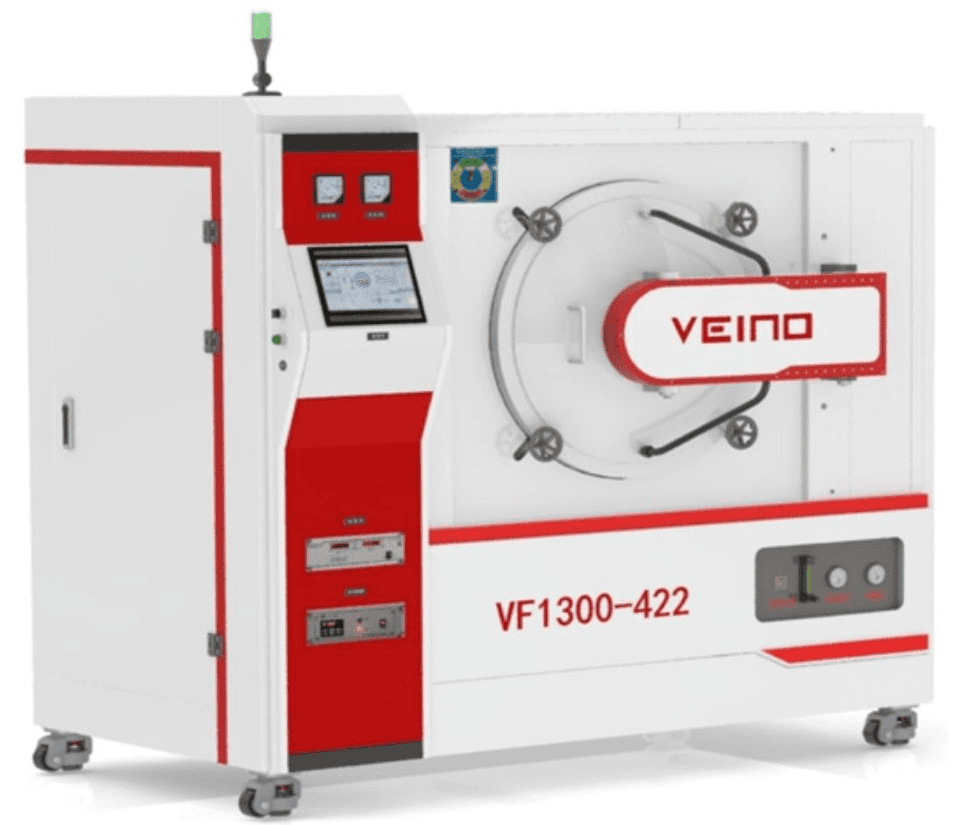

Vacuum Brazing Furnace
Compact in size, it is easy to operate and has excellent temperature uniformity performance (±5℃).

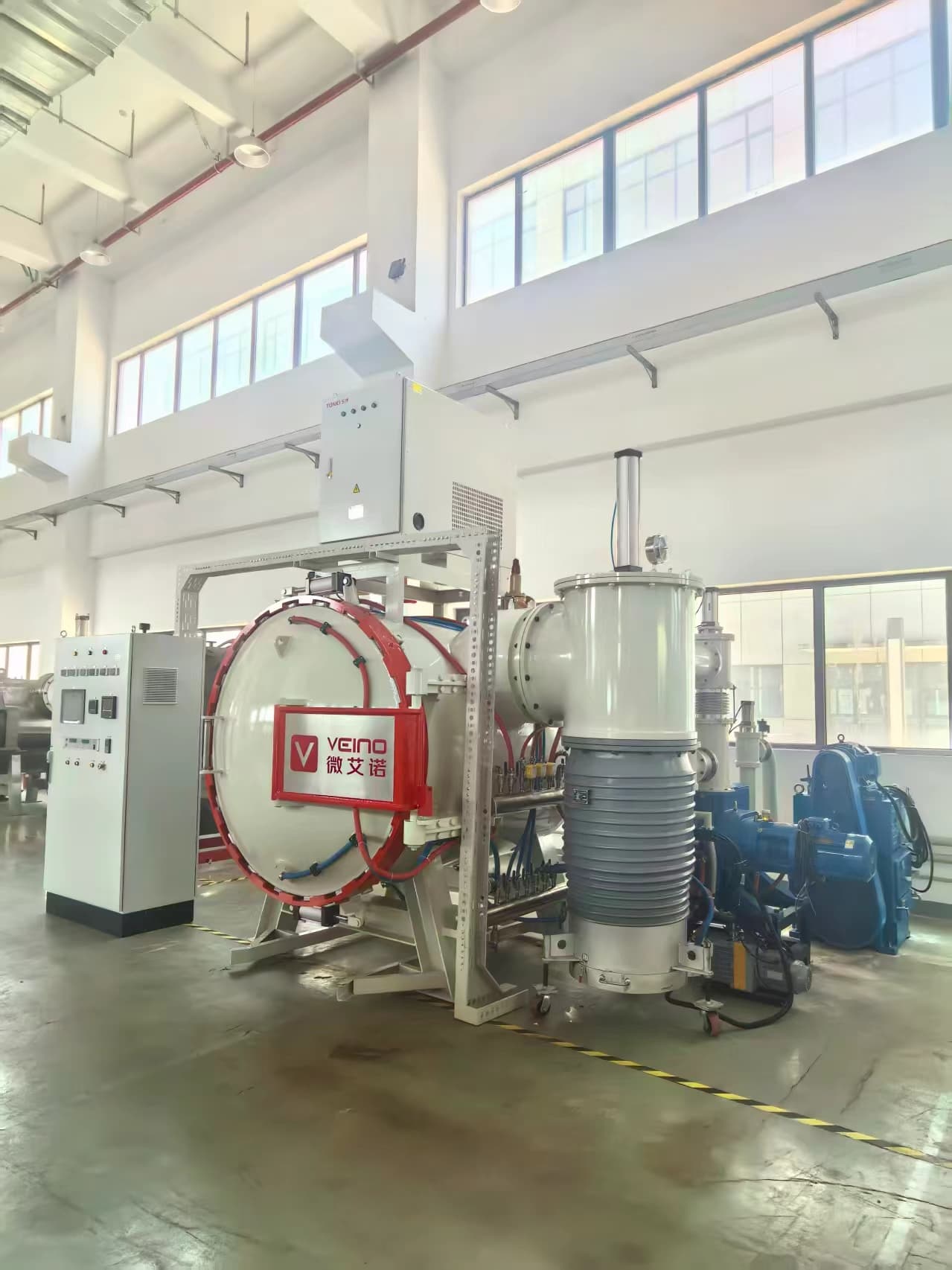

VF-Series (Industrial Furnaces)
Industrial Vacuum Furnace (Brazing)
High-performance industrial horizontal vacuum brazing and heat treatment furnace for large-scale production.

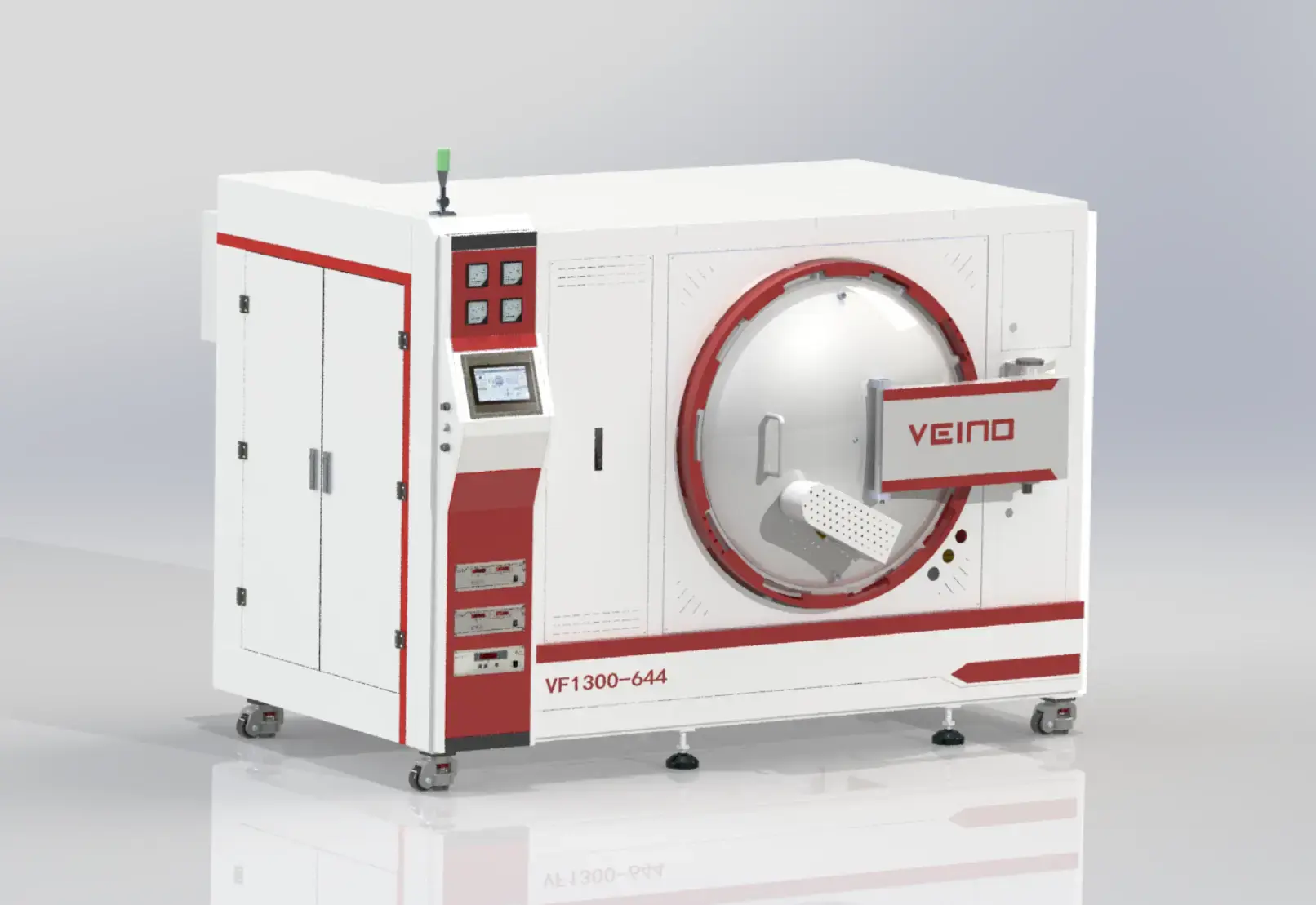

VF-Series (Industrial Furnaces)
