High Vacuum Sliding-Rail Tube Furnace

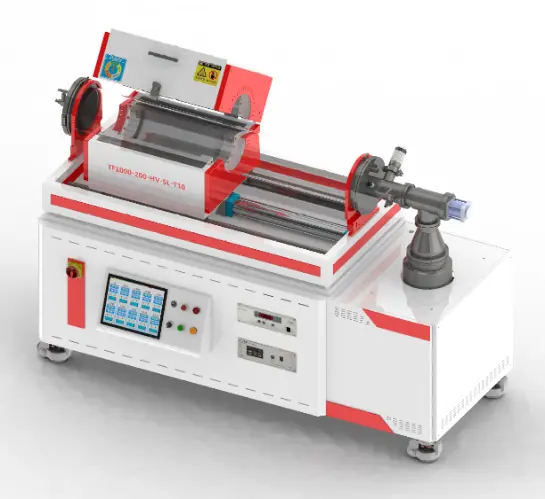

High vacuum sliding rail tube furnace featuring a motorized horizontal movement device for precision positioning of the heating chamber.
Quick Specs
Technical Documents
Tutorial
Technical Specifications
| Furnace Dimensions | |
| Heating Zone: | Ø240 mm × 600 mm |
| Effective Working Zone: | Ø240 mm × 350 mm |
| Equipment Footprint: | Approximately 1000 mm × 2850 mm × 1400 mm |
| Thermal Performance | |
| Maximum Temperature: | 1000°C |
| Continuous Operating Temperature: | 950°C |
| Heating Power: | 21 kW |
| Installed Power: | 25 kW |
| Temperature Control Accuracy: | ±1°C |
| Temperature Uniformity: | ±5°C at 900°C after 60-minute soak under unloaded conditions |
| Maximum Heating Rate: | Up to 20°C/min |
| Heating Elements: | High-efficiency infrared heating tubes |
| Insulation System: | Premium ceramic fiber insulation |
| Power Regulation: | SCR-controlled power modulation |
| Temperature Measurement: | N-type armored thermocouple |
| Control Method: | Intelligent PID automatic adjustment |
| Vacuum System | |
| Ultimate Vacuum (Cold State): | ≤ 2 × 10⁻⁴ Pa |
| Ultimate Vacuum (Hot State): | ≤ 2 × 10⁻³ Pa at 800°C |
| Measurement Range: | Atmospheric pressure to 1 × 10⁻⁵ Pa |
| Mechanical Pump Capacity: | 8 m³/h |
| Turbomolecular Pump Speed: | 600 L/s |
| Pump-Down Time: | ≤ 20 minutes from atmosphere to 2 × 10⁻³ Pa |
| Pressure Rise Rate: | ≤ 1 Pa/h |
Cooling method: Natural cooling (≥600℃)
External air cooling: (<600℃)
Power supply: 25KW, three-phase five-wire, AC380V±10% 50HZ
Cooling gas and driving gas
- Driving gas: Compressed air, 0.4-0.6MPa
- Cooling gas: Nitrogen, purity better than 99.999%
- Inflation pressure ≤5KPa
Water cooling: Inlet water temperature ≤35℃, 2.3T/h
Water pressure ≈0.1MPa
Delivery Cycle:
Standard production and commissioning lead time ranges from 7 to 30 working days, depending on system configuration and project requirements.
