Vacuum Brazed Tungsten Carbide to Tool Steel Assembly

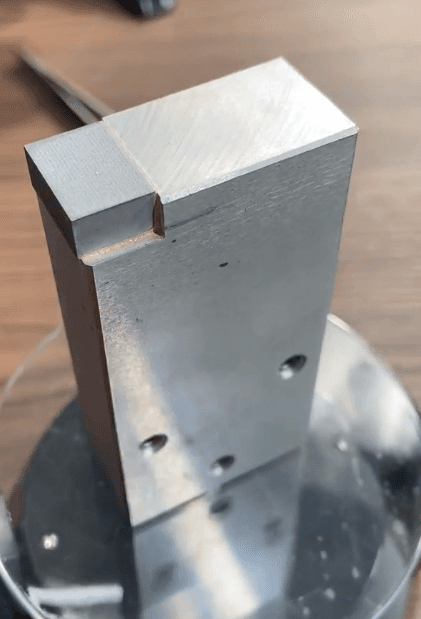

This customer sample demonstrates the vacuum brazing of tungsten carbide to tool steel, a process widely used for high-wear industrial tooling and precision components. The carbide insert was successfully joined to the steel holder using the VF1300‑644 Vacuum Furnace, ensuring precise thermal control and repeatable brazing quality.
The brazing process was carried out in a high-vacuum, oxygen-free environment, allowing clean flux-free joining without oxidation or surface contamination. Uniform heating enabled proper wetting and capillary flow of the brazing alloy, while controlled heating and cooling rates minimized thermal stresses caused by the different expansion characteristics of tungsten carbide and tool steel. This resulted in a dense, void-free joint with excellent bonding strength and dimensional stability.
This application demonstrates the capability of our vacuum furnace technology for reliable carbide-to-steel brazing used in cutting tools, wear components, and industrial parts requiring superior hardness, durability, and long service life under demanding operating conditions.
