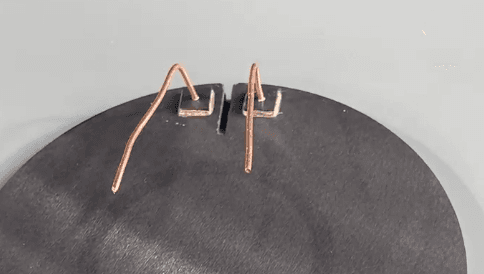

Vacuum Brazed Silicon Carbide Heater Plate Electrode Assembly

This silicon carbide (SiC) heater plate electrode assembly was manufactured using precision vacuum brazing technology in a Normantherm vacuum furnace. The process creates a reliable metallurgical bond between the silicon carbide heating element and the metallic electrode, ensuring stable electrical conductivity and long-term performance under high-temperature operating conditions.
Silicon carbide heating components are widely utilized in semiconductor processing, industrial furnaces, ceramic sintering, and thermal equipment due to their excellent thermal conductivity, oxidation resistance, and high-temperature strength. However, joining metallic electrodes to SiC substrates presents significant challenges because of differences in thermal expansion coefficients and material properties.
By utilizing a controlled high-vacuum brazing process, oxidation is eliminated during heating, allowing the brazing alloy to uniformly wet the joining surfaces and produce a clean, flux-free joint. The resulting assembly exhibits excellent electrical contact, superior thermal stability, and enhanced resistance to thermal cycling.
Processed in a Normantherm vacuum brazing furnace, this electrode assembly demonstrates the capability of advanced vacuum technology to achieve high-integrity ceramic-to-metal joining for critical heating applications where reliability and process consistency are essential.
